    Dissolved Ozone Analyzer

    DK-106S

    Overview

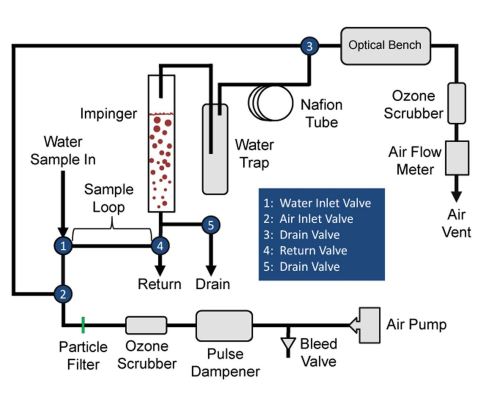

    The DK-106S Dissolved Ozone Analyzer uses a unique micro-spray patented technology to measure dissolved ozone in water with high precision. Unlike most dissolved ozone analyzers use membrane electrode sensor, DK-106S uses UV absorption spectroscopy without consumables.

    DK-106S 溶解臭氧分析仪02.png

    Characteristics


    l No cross-interference to measure dissolved ozone in pure or dirty water

    l NEMA certified dust proof and waterproof Ingress protection

    l High accuracy and precision of 0.05 ppm or 1% reading

    l Measurement per 10s

    l Built-in data memory storage for 16368 sets of data


    Specification


    Range

    0 - 100 ppm (0 - 100,000 ppb)

    Accuracy

    <0.05 ppm or 1% reading

    Resolution

    0.1 ppm (100 ppb)

    Display unit

    ppm, mg/m3

    Response time

    20s

    Detection principle

    Ultraviolet Absorption Spectrum

    Display

    Number

    Built-in memory

    Yes

    Analog output

    0-5 VDC,

    Communication

    RS-232, USB

    Power supply

    11 - 14 VDC 2.2A

    Size

    13.3 x 12 x 7.3 inches (33.8 x 30.5 x 18.5 cm)

    Weight

    14.5 lbs (6.58 kg)

    Relay

    2
