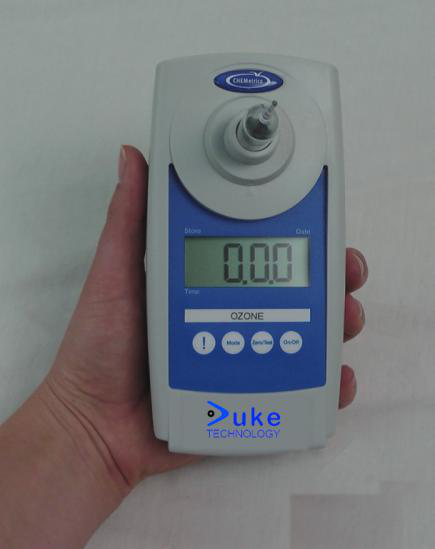

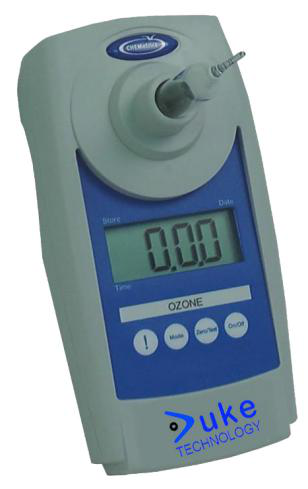

    DK-2019S Dissolved ozonometer



    Low cost

    Measurement ready

    Easy reading

    Handheld

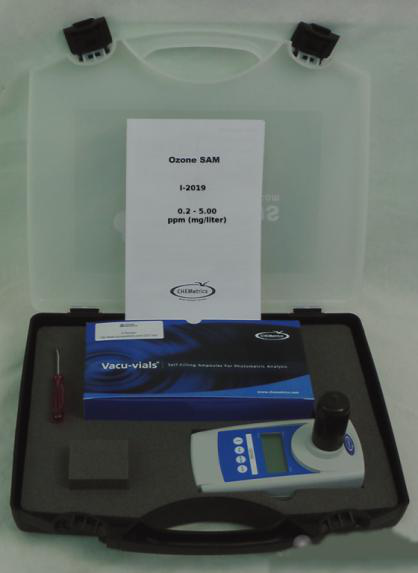

    Contained suitcase





    Overview

    This ozonometer measures ozone concentrations up to 5ppm, is a high-efficiency photometer used to measure the concentration of ozone in dissolved oxygen, the measurement is accurate safe and rapid. Higher concentrations of dissolved oxygen and ozone can be measured by dilution devices up to 25ppm with high accuracy





    Specification

    Range :   0.2 - 5 ppm (200 - 5000 ppb)

    Accuracy : +/- 10% error@3.75 ppm, 或 3.37-4.13 ppm

             +/- 20% error @1.25 ppm, 或 1.00-1.50 ppmDK-2019S溶解臭氧计03.png

             +/- 30% error @ 0.20 ppm, 或 0.14-0.26 ppm

    Resolution : 0.01 ppm (10 ppb)

    Limited detection:  0.2 ppm (200 ppb)

    Display unit:   ppm

    Response time: 1 min

    Measurement method:  DPD  Colorimetric method

    Display : digital

    Temperature range: 41 to 104°F (5 to 40°C)

    Battery : 4 AAA Alkaline batteries

    Dimension : 11 x 2.8 x 2.3 inches (27.9 x 7 x 5.7 cm)

    Weight :    0.49 lbs (0.22 kg)

    Supporting document: Operation manual and safety instruction

    Quality assurance period: 1 year
