Online UV NOx Analyzer
EDK7200
Overview
Overview

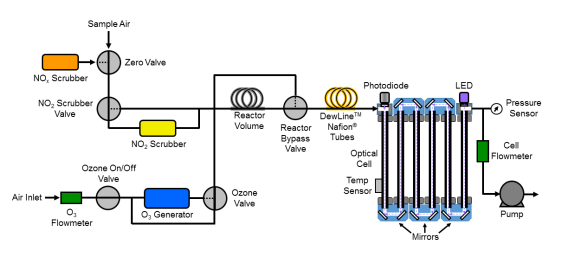

ETG's EDK7200 UV absorption spectroscopy NOx online gasanalyzer, which measures NO, NO2 and total nitrogen oxides NOx in the atmosphere, Beer-Lambert's law based on UVabsorption spectrum, UV light at 405 nm wavelength. When passing through the NO2 gas sample chamber, it is absorbed by NO2.The absorption value and NO2 concentration follow Lambert Beer's law. By measuring the change value of the ultraviolet light signal before and after absorption, the reference light source is compared and calculated, and the measured value is analyzed. The concentration value of NO2; when measuring NO, the sample gas passes through the NO2 scrubber, and the NO in the sample gas and the ozone O3 are highly reacted 100% to form NO2 for measurement, and the concentration of NO2 before washing and NO2 after washing are measured. The difference in concentration gives the concentration of NO; and the total NOx is the sum of NO and NO2.
Characteristics
l Seconds response, measure quickly
l Optional Multi-point Sampler (MPS)
l Modular Design , Simple Maintenance
l 2m absorption light path of the miniature white cell
l Highly Stability Optical System and UV Light Source

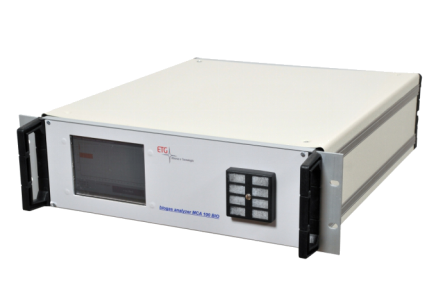

l Plug-and-play of online rack type 3U housing
l Long-path Non-dispersive UV absorption spectroscopy
l Excellent repeatability (2%) , high reliability (IP54)
l Automatic temperature and pressure compensation (built-in pressure temperature sensor)
l Simple operation (5.7”touch screen), rugged and durable (carbon steel housing )
Application
Monitoring and analysing of NO, NO2 and NOx in scientific research and process of environmental protection, Clean room, Pollution source, Meteorological climate, Fertilizer production, Petrochemical raw material gas, Rubber material, Paper making, Textile, Pharmaceutical, Water treatment, Medical and Health care, Food and other industries.
Specification
Specifications |
Range | 0-10,000 ppb; 0-2,000 ppb, (customizable) |
Operation | NO2 only; NO only; NOx only; NO, NO2, NOx total measurement; |
Accuracy/repeatability | <±2.5% F.S.(20s) |
Accuracy | <±2.5% F.S.(20s) |
Resolution | 0.1ppb |
Limited detection | 5ppb (20s) |
Response time | T90 <20s |
Warming-up time | <10min |
Technology | Non-dispersive UV Absorption Spectrum NDUV |
Flow | 0.4 LPM~3 LPM (extraction type), 0.01 LPM~0.1 LPM (diffusion type) |
Pressure | 30~1000 mbar |
Sample temperature | 0-50℃ |

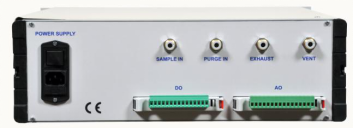

Sample connector | 1/4” Polyvinylidene Fluoride Swelock Accessories |
Gas path material | Polyvinylidene Fluoride, Teflon PFA, Quartz Glass, Fluororubber, etc. |
Inlet mode | Pump extraction type or diffusion type |
Built-in filter | 0.5μm pellet, 30mm long PTFE filter |
Signal output | 4-20mA |
Communication | ModBus RTU, USB |
Dimension | 132.5x495.0x430.5mm |
Weight | 15.75kg |
Power supply | 220VAC@50Hz 100W |
Operating temperature | -5°C+40°C |
Ingress protection | IP54 |
Analysis software | NOxView 2.0 Professional Analysis Software Based on WindowsT |
Display | 5.7” Touch Screen |
Built-in storage | 8G (1 minute sampling can save 1 year data), optional larger memory |
Extraction pump | 15000 hours life pump |
