    Dk-46H high precision dissolved ozone analyser


    Characteristics

    Ideal for monitoring low concentration ozone applications（<1ppm）

    Optional multi-span range

    Contains stable flow pool

    2 alarm relay outputs

    Simultaneous display of temperature





    Overview

    Dk-46h dissolved ozone analyzer is an economical and reliable instrument for measuring the concentration of dissolved ozone in water and controlling the ozone generator. With multi-function output such as 4~20mA analog quantity, PID control, adjustable relay and digital communication, suitable for any ozone analysis application.

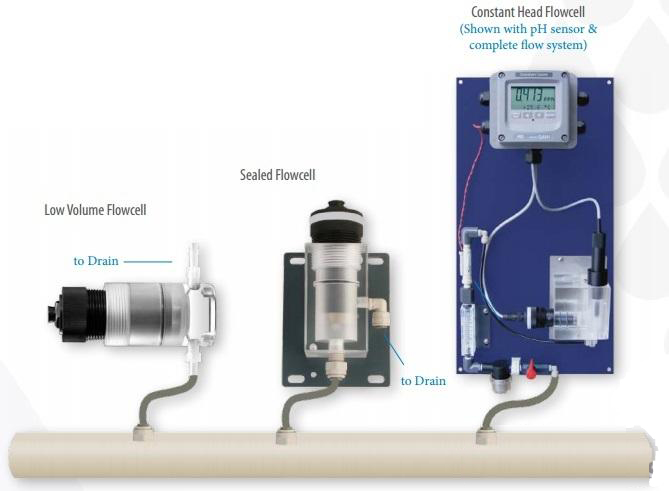

    Optional sensor     description

    PH sensor                the PH sensor is used in a 46H dissolved ozone analyser





    Specification

    Range                  0~2 ppm (0~2000 ppb)DK-46H 高精度溶解臭氧仪  02.png

    Accuracy                +/- 0.5%

    Resolution              0.01 ppm (10 ppb)

    Limited detection        0.01 ppm (10 ppb)

    Display unit              ppm

    Response time            1s

    Detection principle        polarography

    Display                  digital

    Built-in memory           none

    Analog output          4 - 20mA

    Temperature range        32 ~ 212°F (0.0~ 100°C)

    Power supply              120 - 240 VAC 60 Hz

    Dimension              3.8 x 3.8 x 3.3 inches (9.7 x 9.7 x 8.4 cm)

    Weight                  2 lbs (0.91 kg)

    Quality assurance period    1 year

    Relay                     2
