ETG CAL-G 100
Precise Gas Calibrator with Permeation Oven
ETG's Model CAL-G-101 Permeation oven is a simple, effective tool for generating precise gas concentrations for calibrating air quality analyzers, source monitors and other instruments. When combined with ETG's Gas Dilution Calibrators, it creates a powerful and intelligent calibration system.
The Model CAL – G - 101 Permeation oven chamber is large enough for a variety of tasks and was designed to be used in a number of different settings.

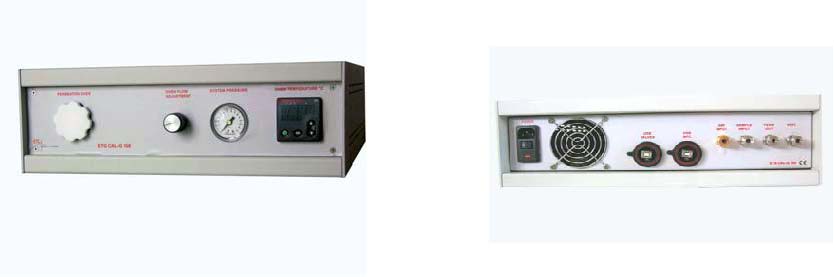

Operators can use many types and sizes of permeation tubes concurrently in the Model CAL – G – 101’'s large-capacity gas permeation chamber. A front panel mounted precision pressure regulator, reference pressure gauge,temperature controller and oven inlet give the operator easy access to the unit controls at all times

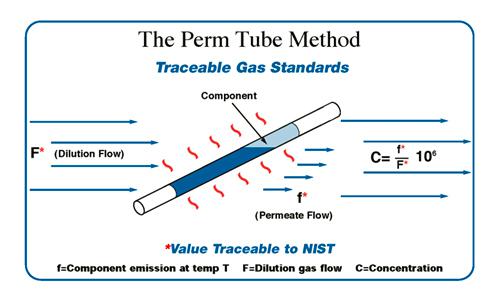

The most common type is a small tubular device that has liquid analyte sealed inside the tube. A very small but stable flow (nanograms-per-minute) of analyte vapor is emitted through the tube wall at constant temperature. The emission rate of the tube is determined by measuring the rate of weight loss.
Permeation tubes use a permeable membrane to dispense a small flow of chemical vapor
· Microprocessor-based temperature controller featuring proportional heater control and digital display of set point and oven temperatures
· Digital display of temperature and set point
· RTD temperature sensor MFC to set precise flow control by analogic external signal or via ETG SW Zero & span calibration by internal solenoid valve Double oven option
· Front panel mounted pressure regulator, pressure gauge,temperature controller and oven inlet
· Glass Oven Size: 3.20 cm inside chamber diameter, 13.4 cm usable length, 107 cubic cm volume
· Teflon Coated Oven Size: 3.09 cm inside chamber diameter,12.7 cm usable length, 123.6 cubic cm volume
· Operating Range: 2 deg. C above ambient to 60 deg. C, alternate ranges available upon request
· Quite, long life diaphragm pump
· Air inlet filter
· Moisture removal system
· Unit Operating Temperature: 5 deg. C to 40 deg. C
· Warm Up: Less than 30 minutes
· Electrical: 115/230 Vac, 200 VA, 50/60 Hz
· Unit Size (13.3 cm) x (48.3 cm) W x (38.1cm) D
· Weight (9 kg)
